路劲·御合院|生活美学馆灯光设计

2021-01-29

来源:创星行

18030

导语: 路劲·御合院项目位于北京亦庄新墅区,占地面积约10万平米,建筑面积约15万平米,容积率1.6。她以“东方雅居·极致生活”为定位,是环京改善型品质住宅典范项目。


业主单位:路劲地产北京总部

管控人员:邵国栋、王凯

建筑公司:云翔设计

主创设计:朱鹏飞

灯光公司:创星行Beijing

设计团队:孟山山、周蕾、朱天祥、孟小宁、孟小雨

项目状态:建设中(销售中心已开放)

营销电话:010-60250999


Owner: Lujin real estate Beijing headquarters

Control personnel: Shao Guodong, Wang Kai

Construction company: Yunxiang design

Main design: Zhu Pengfei

Lighting company: chuangxingxing Beijing

Design team: Meng Shanshan, Zhou Lei, Zhu Tianxiang, Meng Xiaoning, Fu Xiaoxia, Feng Chaoxia, Meng Xiaoyu

Project status: under construction (sales center opened)

Marketing Tel: 010-60250999

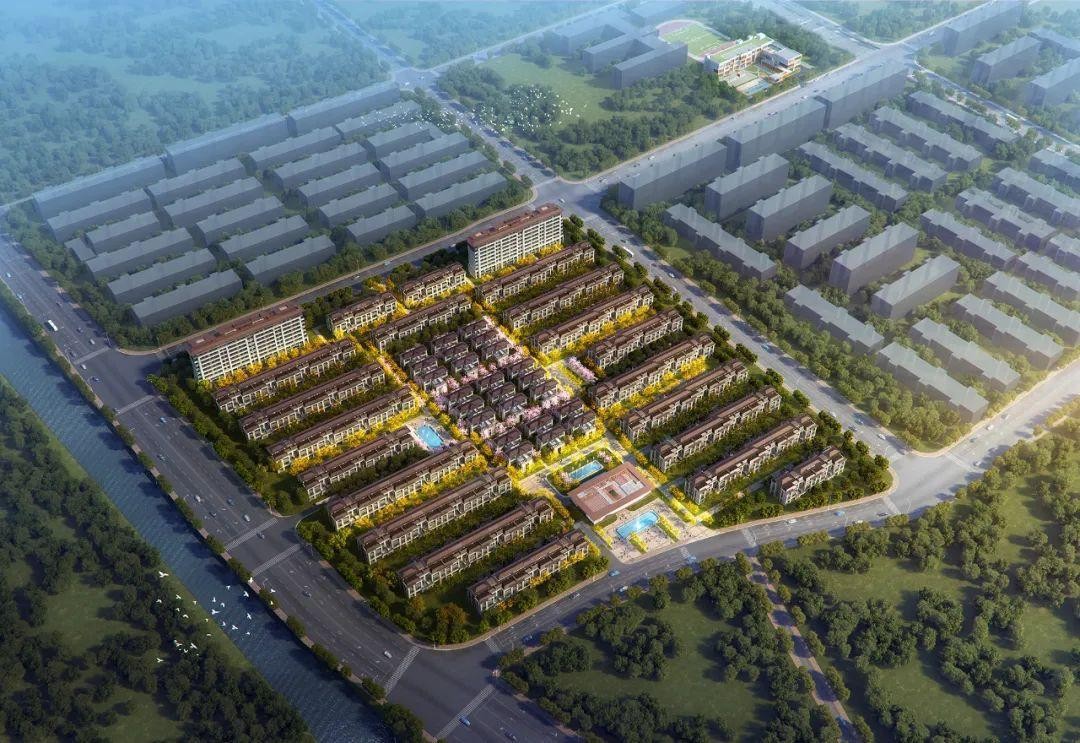

路劲·御合院项目位于北京亦庄新墅区,占地面积约10万平米,建筑面积约15万平米,容积率1.6。

她以“东方雅居·极致生活”为定位,是环京改善型品质住宅典范项目。

Lujin yuheyuan project is located in Beijing Yizhuang Xinshu District, covering an area of about 100000 square meters, a construction area of about 150000 square meters, and a plot ratio of 1.6.

With the orientation of "Oriental elegant residence · ultimate life", it is a model project of improving quality housing around Beijing.


此次灯光设计范围为生活美学馆,亦是入住后的社区生活会客厅。

The scope of the lighting design is the life aesthetics hall, which is also the reception hall for community life.

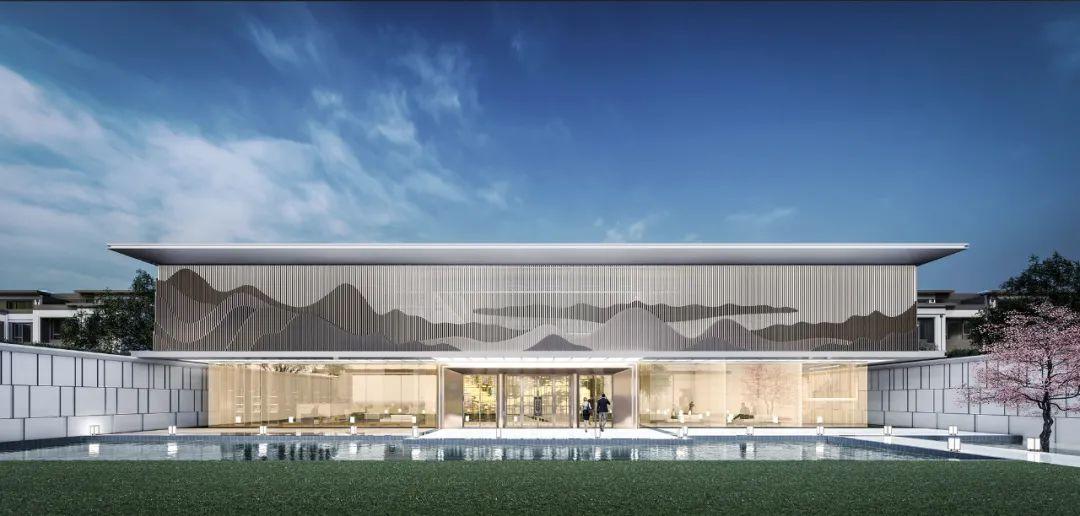

▲生活美学馆 Life aesthetics Museum

灯光以出则繁华、入则幽静的设计理念,积极追寻项目内在人文特质与“中而新”建筑形态的夜景契合点,塑造中正雅致、浪漫灵动的灯光场景。

With the design concept of prosperity and quietness, lighting actively pursues the meeting point between the inherent humanistic characteristics of the project and the "Chinese but new" architectural form, and creates the elegant, romantic and flexible lighting scene of Zhongzheng.


灯光设计师通过对建筑艺术特征认知与探索,强调心性之延展,实现人文山水之意境,暖色调贯穿建筑内外,中亮度弱对比关系达到极致的舒适感官,在光影之间,呈现氤氲的视觉画面,鳞次栉比的格栅细节细腻舒展,进而达到“人在画中游”的心境体验。

在当代人居生活进程中,生活会客厅是归家时的明灯,也是邻里关系的见证。

Through the cognition and exploration of architectural art characteristics, lighting designers emphasize the extension of heart and nature, and realize the artistic conception of humanistic landscape. Warm color runs through the inside and outside of the building, and the relationship between medium brightness and weak contrast achieves the ultimate comfortable sense. Between light and shadow, dense visual images are presented, and row upon row of grid details are delicate and stretched, so as to achieve the mood experience of "people in painting".

In the process of contemporary human settlement, the living reception hall is not only the light of returning home, but also the witness of neighborhood relationship.



入口:中正典雅、徐徐展开,高亮度弱对比关系的尊贵仪式感,暖色光外溢烘托层层递进。

Entrance: Zhongzheng is elegant, unfolds slowly, highlights the low contrast relationship of the noble ritual feeling, warm color light overflows, foil layer upon layer progressive.


庭院:满园春色关不住,银杏红枫齐争艳,对称式布局,地面平均照度60LX,温和舒适。

Courtyard: spring can't be closed, gingko and red maple are in a symmetrical layout, the average illumination on the ground is 60lx, gentle and comfortable.


建筑画面:“写意山水 ,轻盈灵动”山的重叠 云的缥缈。

Architectural picture: "freehand landscape, light and flexible" mountain overlapping cloud ethereal.

灯光设计细节:采用4000k、18W、10*60度角线性投光灯隐藏式上下投光让U玻晶莹剔透,形成画面图底。

Lighting design details: 4000K, 18W, 10 * 60 degree angle linear projection lamp, hidden up and down projection, making u glass crystal clear, forming the bottom of the picture.

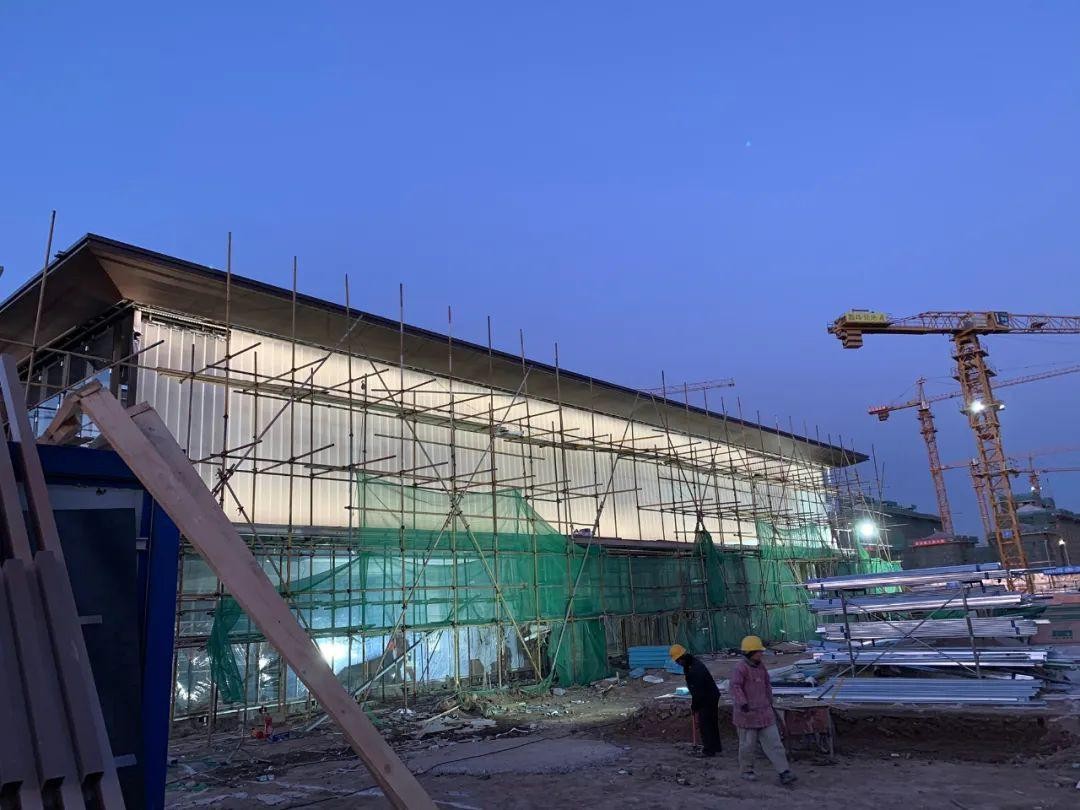

▲灯光施工现场 Lighting construction site

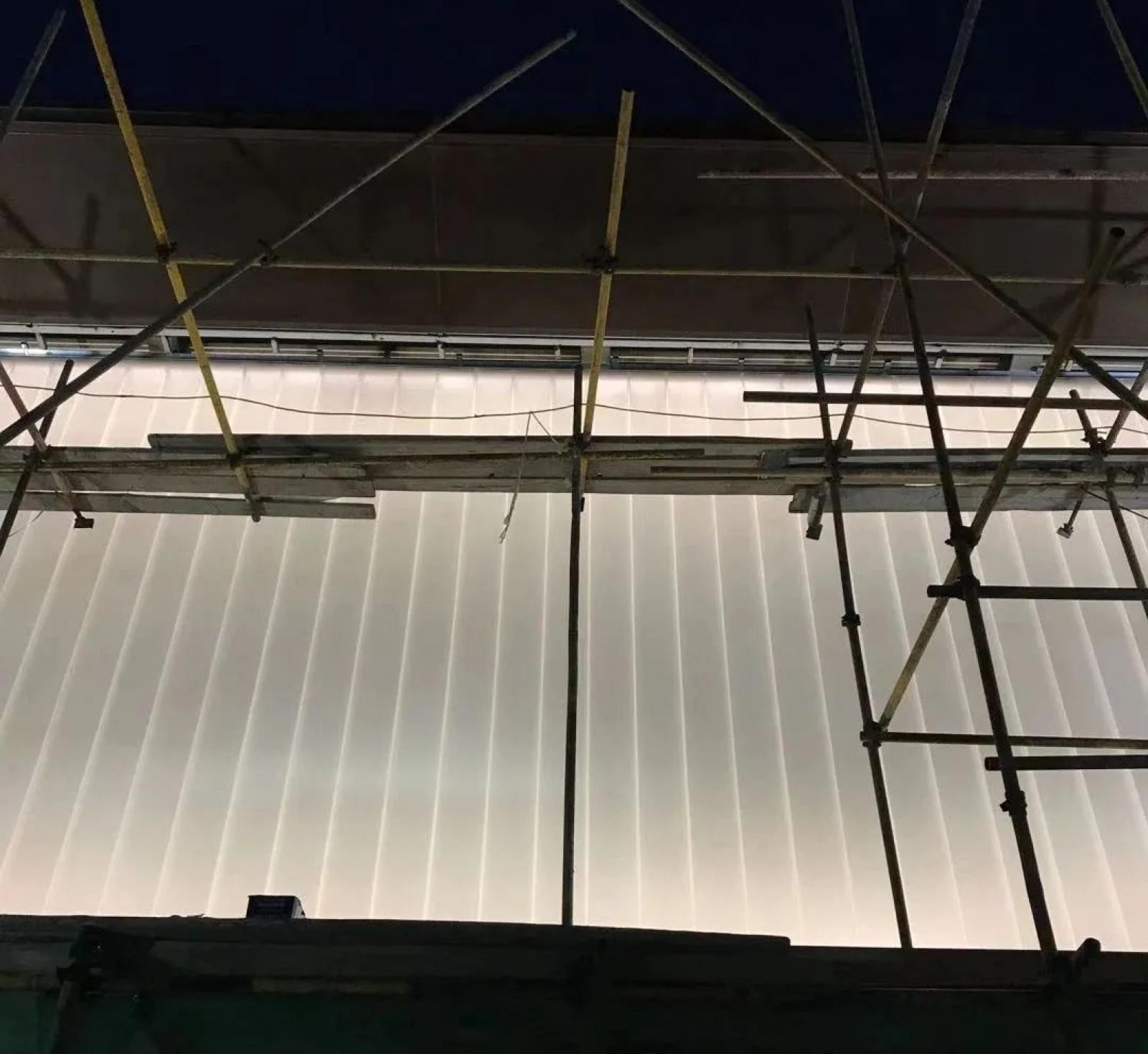

▲灯光施工现场 Lighting construction site

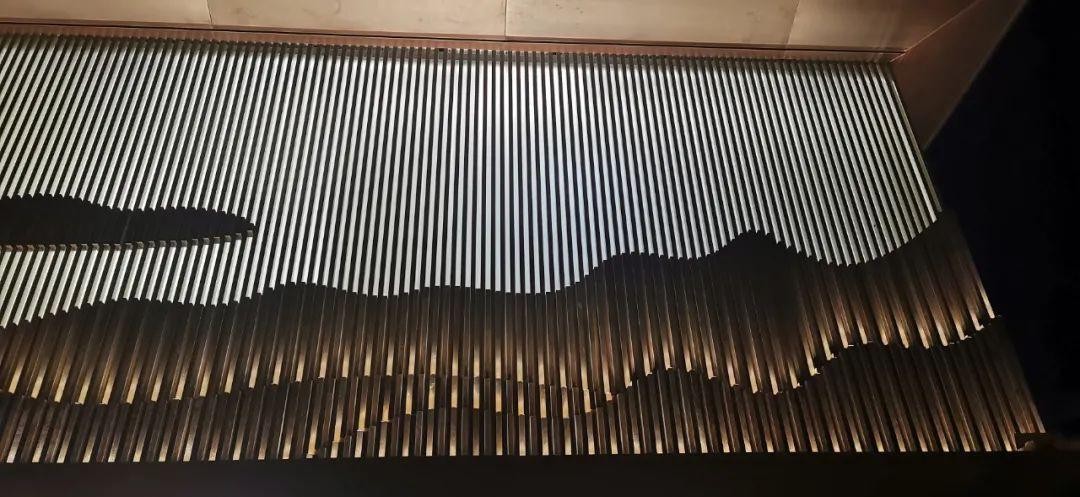

3w、8度角预埋式投光灯间隔投亮格栅,鳞次栉比,节奏流线与错位层数交错,韵染画面图元。

The 3W, 8 degree angle embedded floodlights are arranged in rows with light grid, rhythm streamline and staggered layers, and the picture elements are rhymed and dyed.

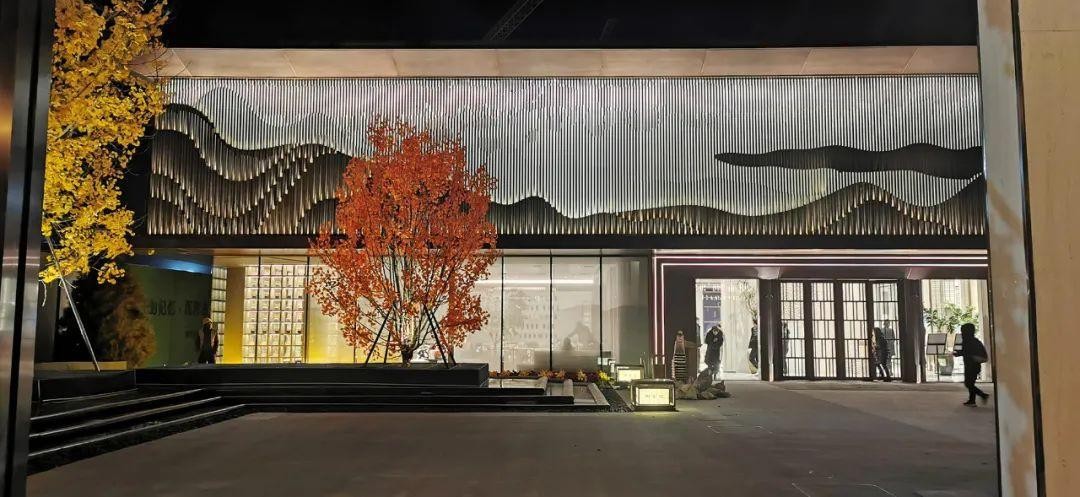

U玻与格栅结合形成的光影关系呈现出步移景异的视觉误差。(U玻整体亮度一致,走位形成的视觉中心最亮。)

The light shadow relationship formed by the combination of U-glass and grating shows the visual error of step moving scene difference. (the overall brightness of U-glass is the same, and the visual center formed by walking position is the brightest.)

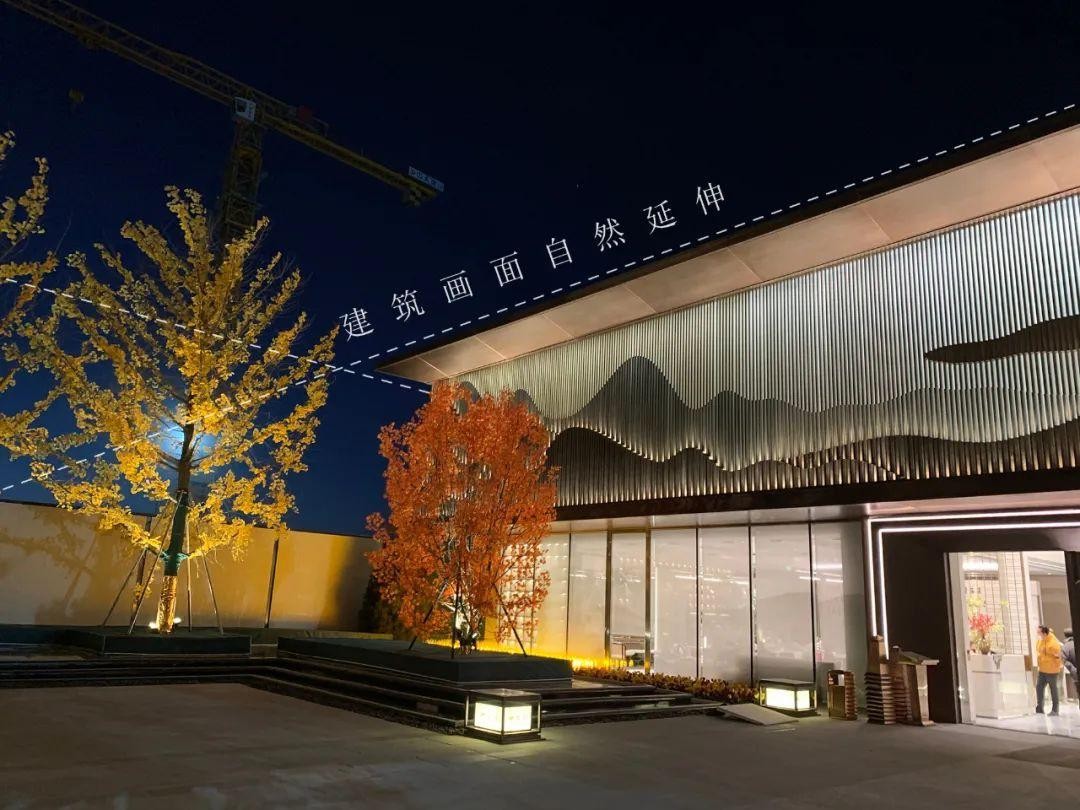

本次设计并未对建筑顶部进行细节勾勒,使建筑更富张力,让主景画面延伸。

This design does not outline the details of the top of the building, making the building more tension and extending the main scene.


室内灯光效果 Indoor lighting effect



相关指标:

建筑面积:1100㎡

外立面灯光造价:约24万,单方造价(建面):218元/m²

色温选择:暖色调,3000K、4000K

主立面亮度区间:最低平均亮度2.3cd/m²(测光点8个),最高平均亮度9.8cd/m²(测光点12个)

主立面亮度比:1:4.2

总功率:5.6kw,功率密度(建面):5w/m²

单灯最高功率:18w/m

单灯最低功率:1w/套

Relevant indicators:

Building area: 1100 M2

Facade lighting cost: about 240000 yuan, unilateral cost (building surface): 218 yuan / m2

Color temperature selection: warm color, 3000K, 4000K

Brightness range of the main facade: the lowest average brightness is 2.3cd/m2 (8 light measuring points), and the highest average brightness is 9.8cd/m2 (12 light measuring points)

Brightness ratio of main facade: 1:4.2

Total power: 5.6kw, power density (building surface): 5W / m2

Maximum power of single lamp: 18W / M

Minimum power of single lamp: 1W / set
